Motherboard Specification
- Intel Q870 chipset.
- Socket LGA 1851 supporting Intel Core Ultra Series 2 processors.
- Integrated TPM 2.0.
- Intel vPro and AMT technology built in.
- Two DDR5 DIMM slots - Supporting a maximum of 256GB @ up to 5600MHz DIMM (6400MHz CUDIMM).
- four SATA 6.0GB/s ports (grey).
- One M.2 Slot 2242/2260/2280 with M Key, supporting PCIe 5.0 x4.
- One M.2 Slot 2242/2260/2280 with M Key, supporting PCIe 4.0 x4.
- One PCIe 5.0 x16 slot (x16 mode).
- One PCIe 4.0 x16 slot (x4 mode).
- One PCIe 4.0 x1 slots.
- One HDMI and two DisplayPort, supporting maximum resolutions up to 4096x2304 @60Hz (HDMI 2.1 & DP1.4) and up to 4 displays simultaneously.
- Intel I219-LM, 1x Gigabit LAN controller.
- Realtek ALC887 High Definition Audio.

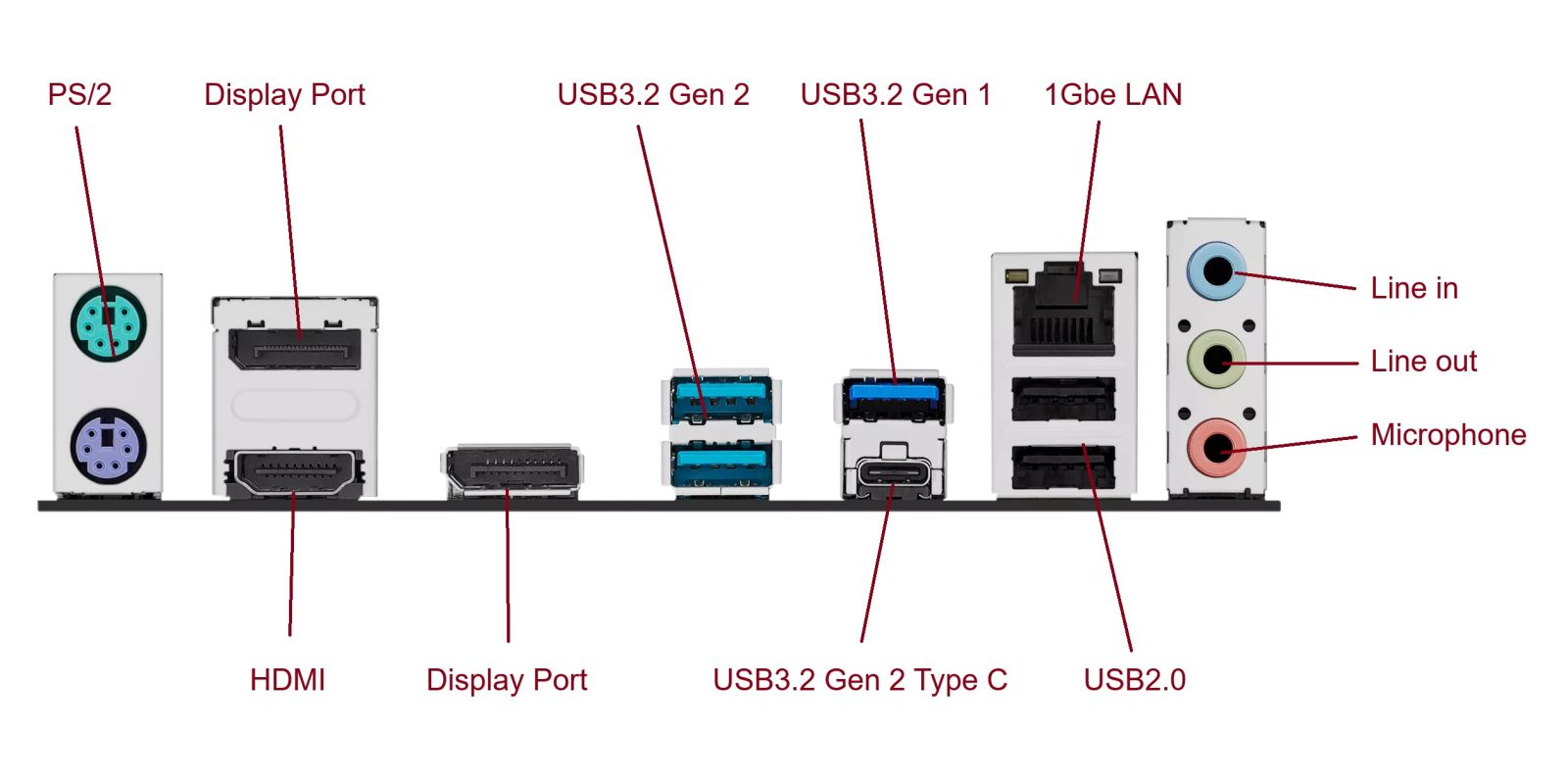

- One USB3.2 Gen 2 Type C rear port.
- Two USB3.2 Gen 2 Type A rear ports.
- One USB3.2 Gen 1 Type A rear port.
- Two USB2.0 Type A rear ports.
- One USB3.2 Gen 1 internal connector (two ports total).
- One USB3.2 Gen 2 Type E internal connector (supports one Type C port).
- Two USB2.0 internal connectors (four ports total).
- Micro ATX form factor.
- One M.2 slot, Key E, CNVi/PCIe, supporting WiFi+BT module (sold separately).

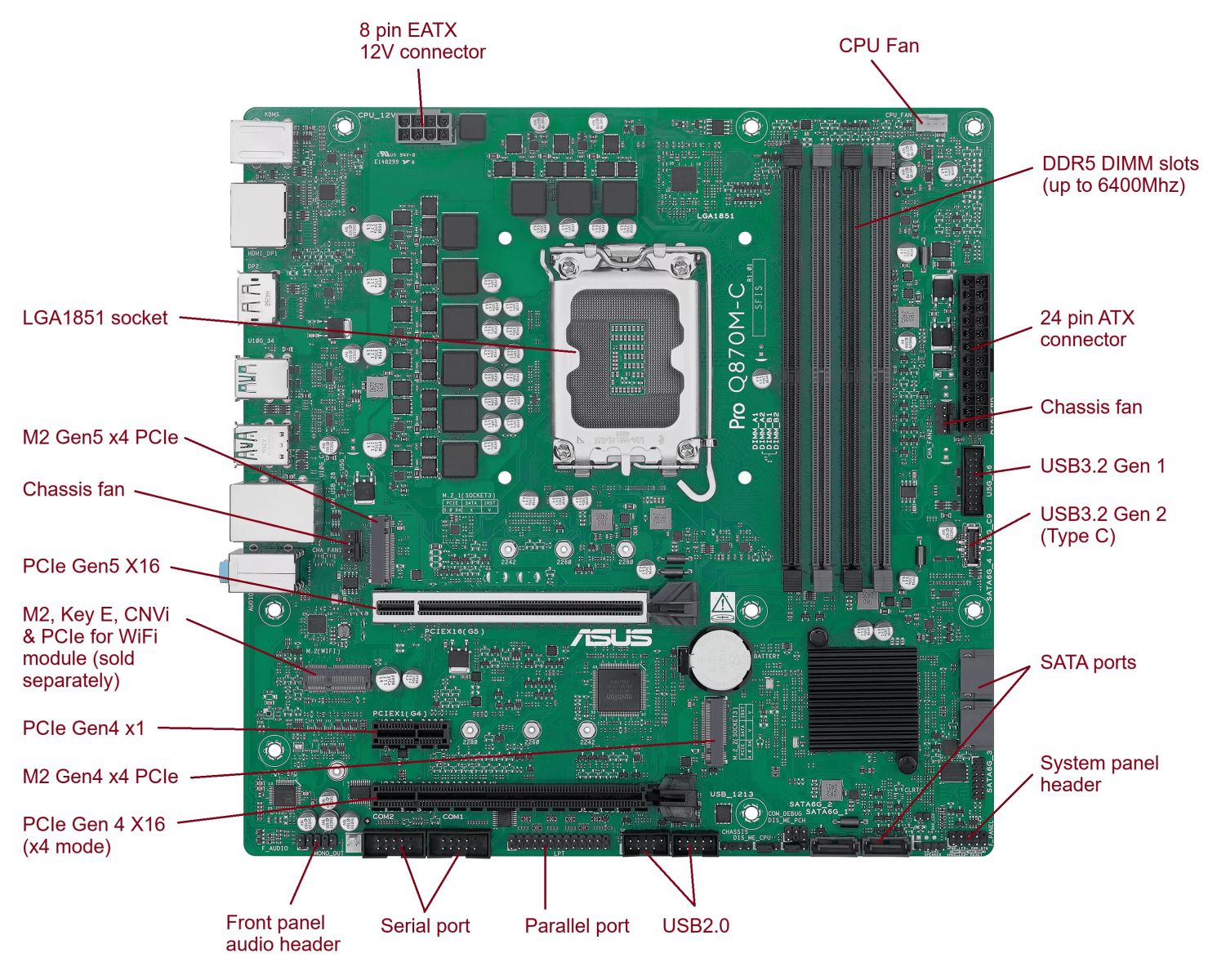

Product Layout
Product Manual
Please find the manual for this motherboard attached to this article.
Applies to:
- BOAMOT-529 - Stone / Asus Q870M-C
