Motherboard Specification
- Intel H610 chipset.
- Socket LGA 1700 (socket V) supporting Intel Core 12th/13th/14th Generation processors.
- Intel Platform Trust Technology (firmware TPM 2.0).
- Two DDR5 SODIMM slots - Supporting a maximum of 64GB @ 4800MHz/5000MHz/5200MHz/5400MHz/5600MHz (CPU dependant).
- Two SATA 6.0GB/s ports (grey).
- One M.2 Slot 2242/2260/2280 with M Key, supporting PCIe 3.0 x4.
- One M.2 slot, Key E, CNVi/PCIe. Supporting WiFi+BT module (sold separately).
- HDMI, DisplayPort and LVDS connectors supporting maximum resolutions up to 4096x2304 @60Hz (HDMI 2.1 & DP1.4) and up to 3 displays simultaneously.
- Realtek RTL8111, 1x Gigabit LAN controller.
- Realtek ALC887 High Definition Audio.

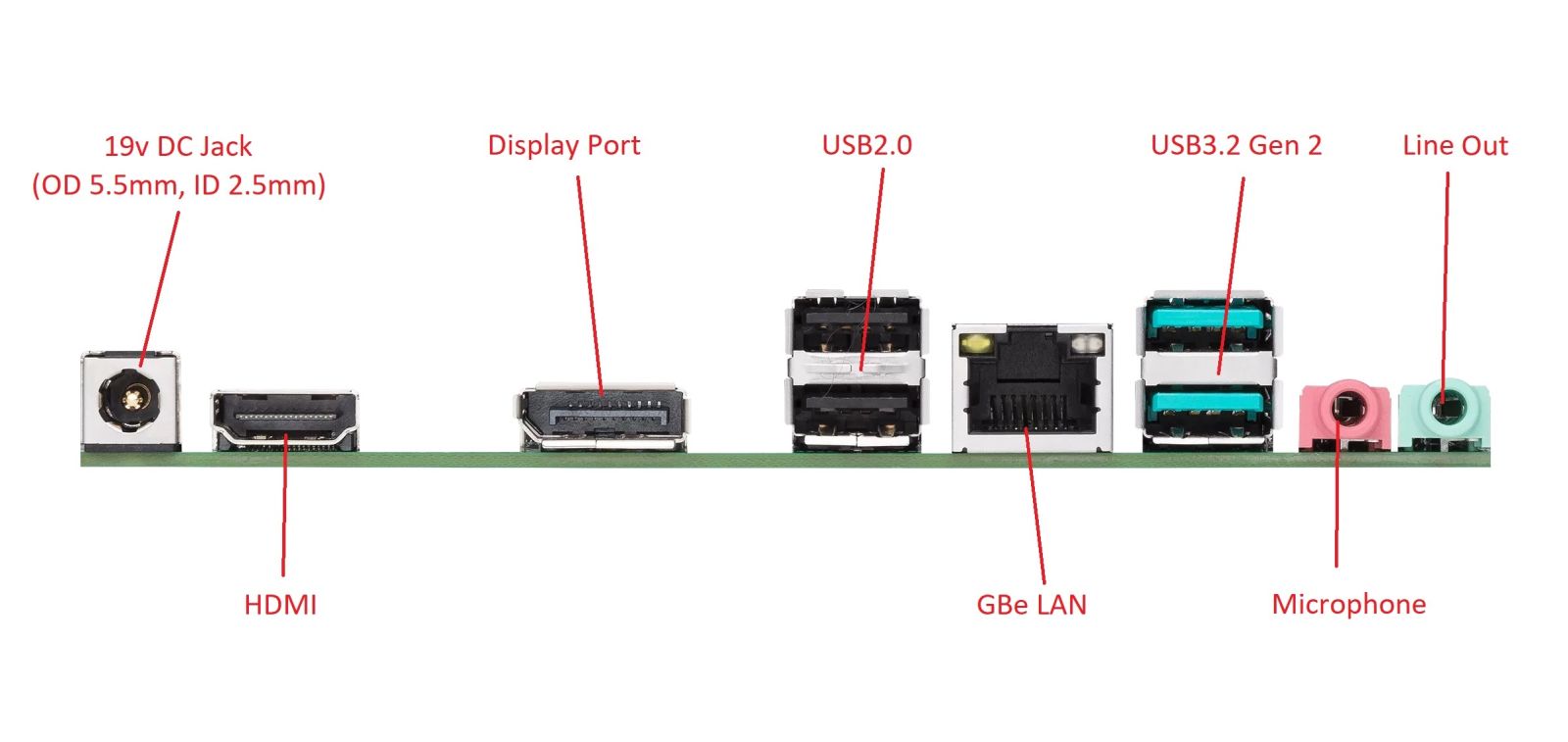

- Two USB3.2 Gen 2 Type A rear ports.
- Two USB2.0 Type A rear ports.
- One single USB2.0 internal connector (one port total).
- Two USB2.0 internal connectors (four ports total).
- Thin Mini ITX form factor.

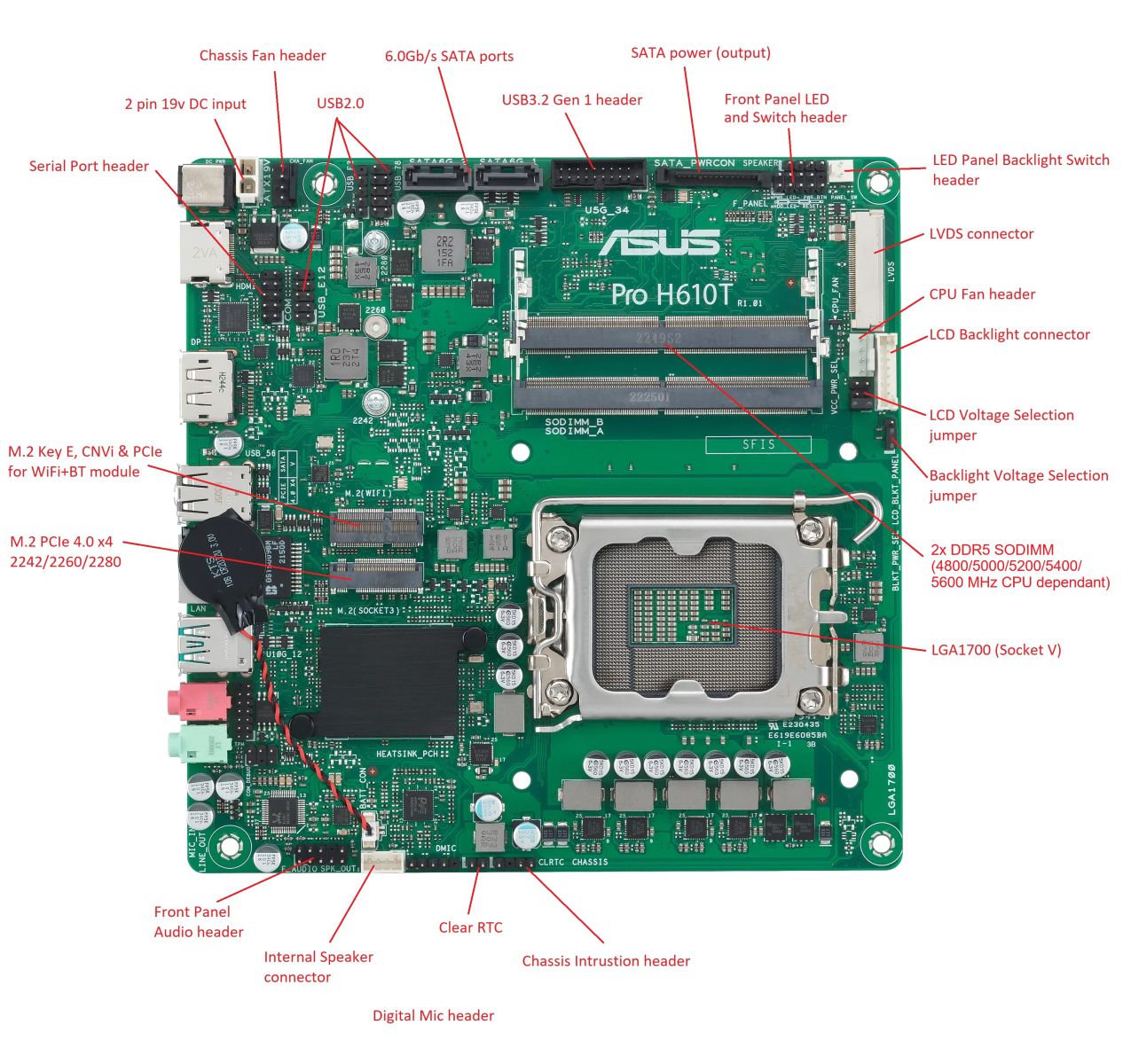

Product Layout
Product Manual
Please find the manual for this motherboard attached to this article.
Note: With the launch of Intel's 12th generation processors the dimensions of the processor socket have changed, resulting in the need for new mounting mechanism design for processor coolers. Intel have launched their new 'Laminar' cooler range which will be shipped with boxed processors.
Applies to:
- BOAMOT-527 - Stone / Asus H610T
